Product Details
＋

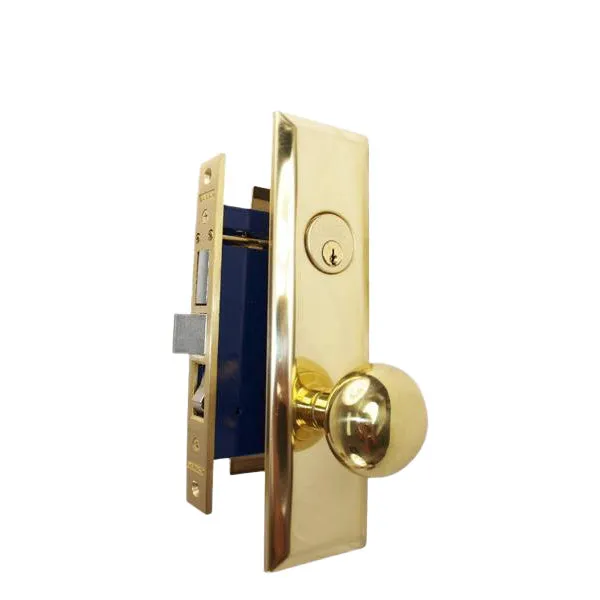

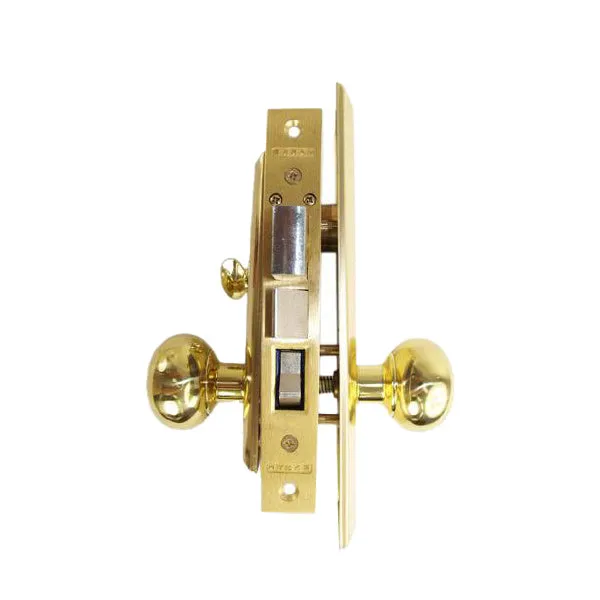

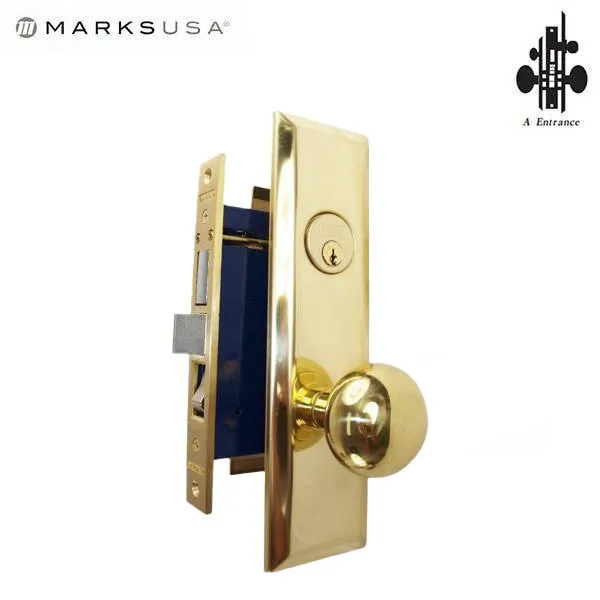

Marks 9 Series Mortise Locksets feature a high pressure cast Zamac body with a baked enamel finish to resist corrosion, cast alloy 1" throw deadbolt for strength, and a flexible face plate that may be installed flat or with a 3 degree bevel. The 9 Series are available with a variety of different knobs, levers, roses and plates making these efficient mortise locksets a great choice for commercial applications when grade 1 fire rated locksets are not required.
Features:
- Thru-bolted screwless knob/lever plate assemblies
- Independent spring loaded captivated spindles
- Reversible mortise lock 2-1/2" backset
- Lever support springs
- Lock front: 1-1/16" x 7-5/8"
- Dimensions: Ext: 10" H x 2-3/4" W, *Int: 7" H x 2-1/4" W
- Cylinder: MARKS "C" keyway, 6 pin w/2 keys
Specifications:
| Trim | Series 9 New Yorker Mortise Lever Lockset |
| Function | Entrance - Latch by knob either side except when locked by stop-button; then by key outside, knob inside. Deadbolt by key outside; handpiece inside. |
| Cylinder | Marks "C" keyway, 6pin w/ 2 keys |
| Bolt | Cast alloy full 1" throw |
| Latch | Solid brass 1/2" throw, reversible |
| Backset | 2-1/2" |
| Lock Front | 1-1/16" x 7-5/8", Flat or 3° bevel |
| Door Thickness | 1-5/8" to 2-1/4" standard. |
| Lock Specifications | 9 series (2-1/2" Backset) |
| Case | High pressure cast Zamac with a baked enamel finish |
| Hubs | 9/32" on square steel |
Diagram (Note Diagram Shows Deadbolt Models )
