Elevate your lighting control with the EL-T14 LED RGBW Wall Remote Touch Panel Controller, designed to offer seamless control and superior flexibility for your lighting system.
Ideal for exhibit & display, residential, and commercial environments, this sleek and intuitive controller allows you to manage multiple zones of RGBW lighting with ease, offering precise color and brightness adjustments at your fingertips.
Whether you're designing ambient lighting for a home, a dynamic atmosphere for a commercial space, or sophisticated control for a larger lighting installation, the EL-T14 LED RGBW Wall Remote Touch Panel Controller offers intuitive, professional-grade performance with style.
Do you need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with lighting plans or installation instructions.

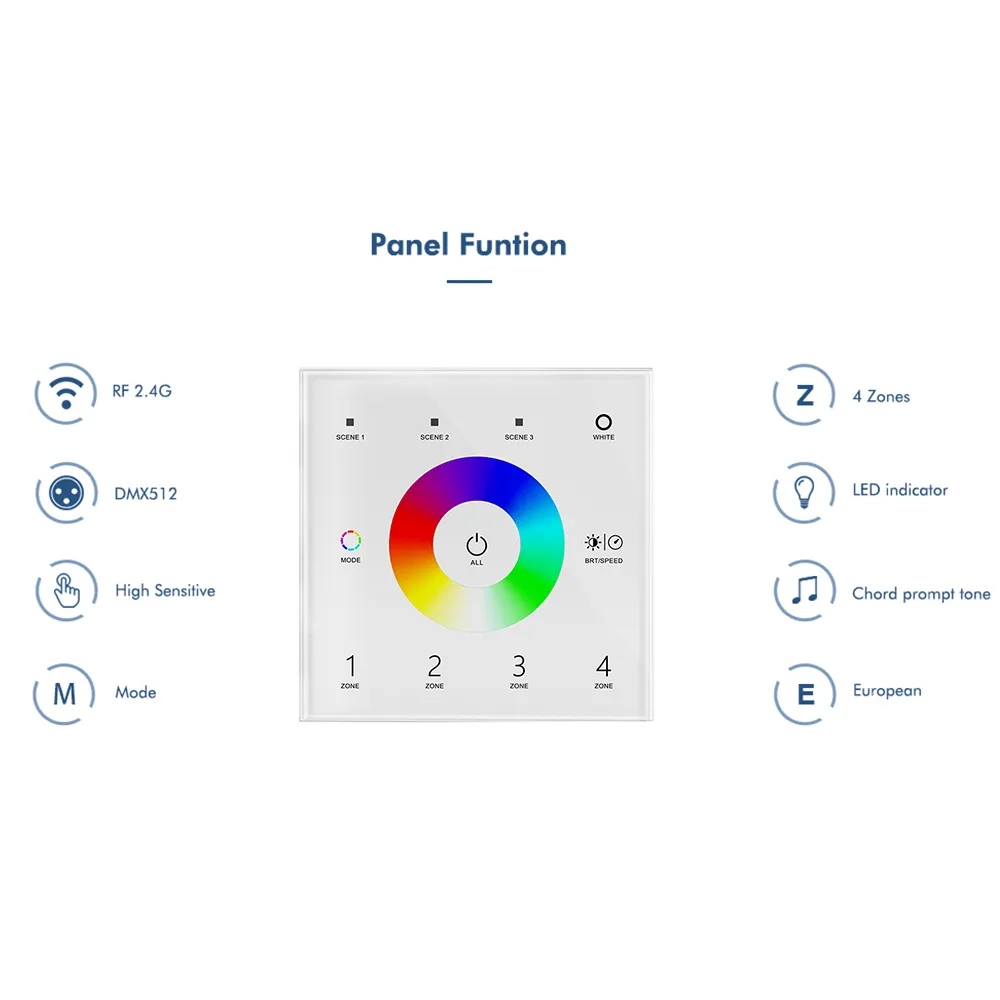

Key Features

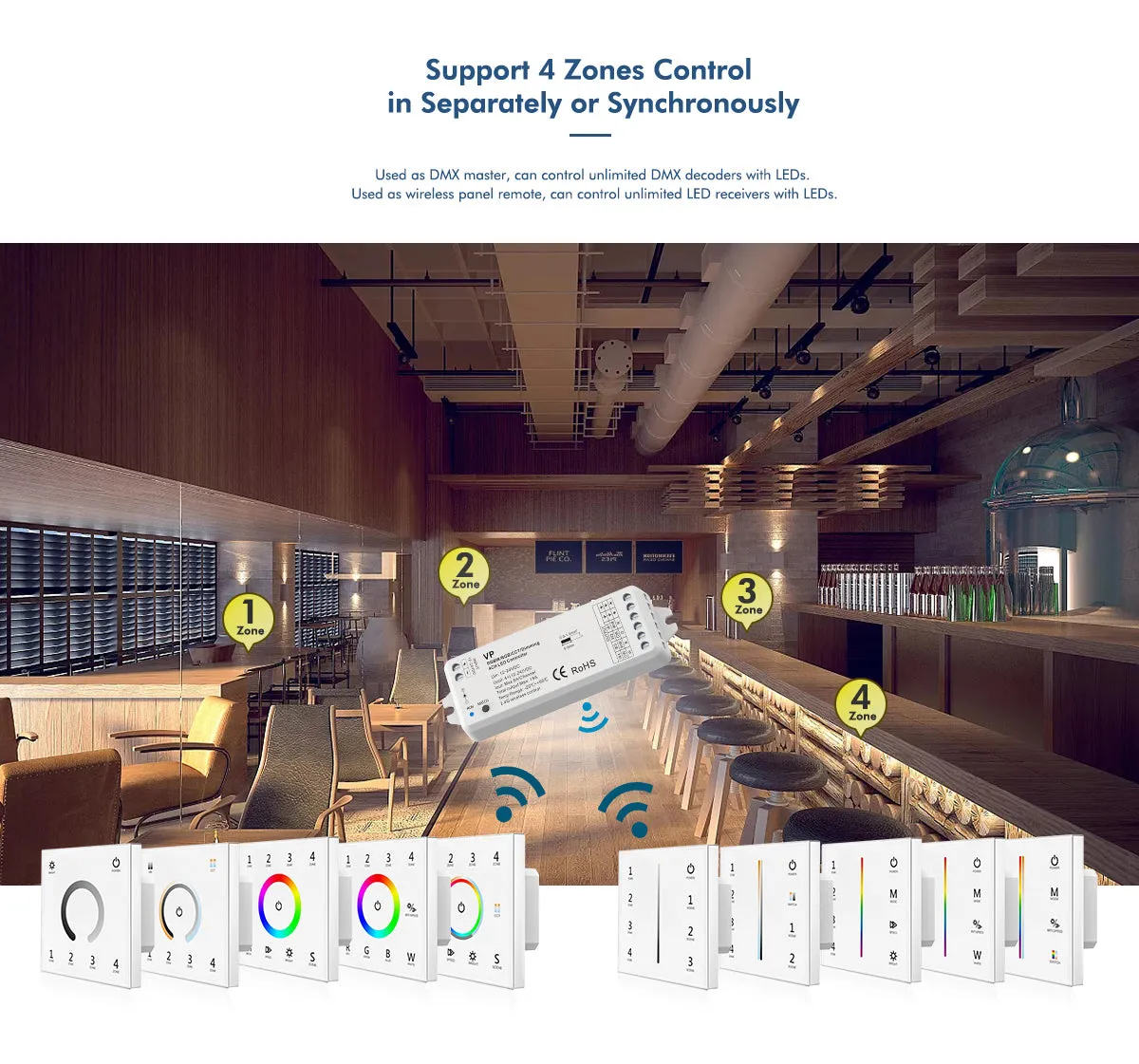

- The touch panel 4 zone 1-4 color DMX512 master can also be used as a 4 zone 1-4 color RF remote.

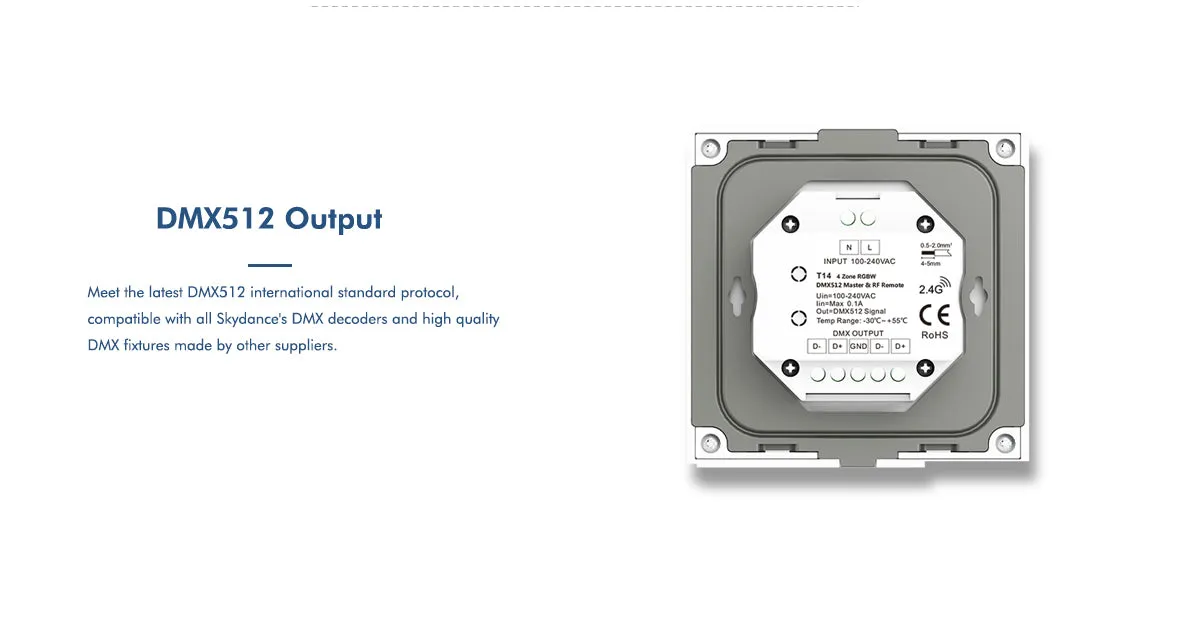

- DMX signal output, complies to standard DMX512 protocol, compatible with DMX decoder from any manufacturer.
- When used as RF remote, each zone can remotely control multiple RF 2.4G LED controllers.

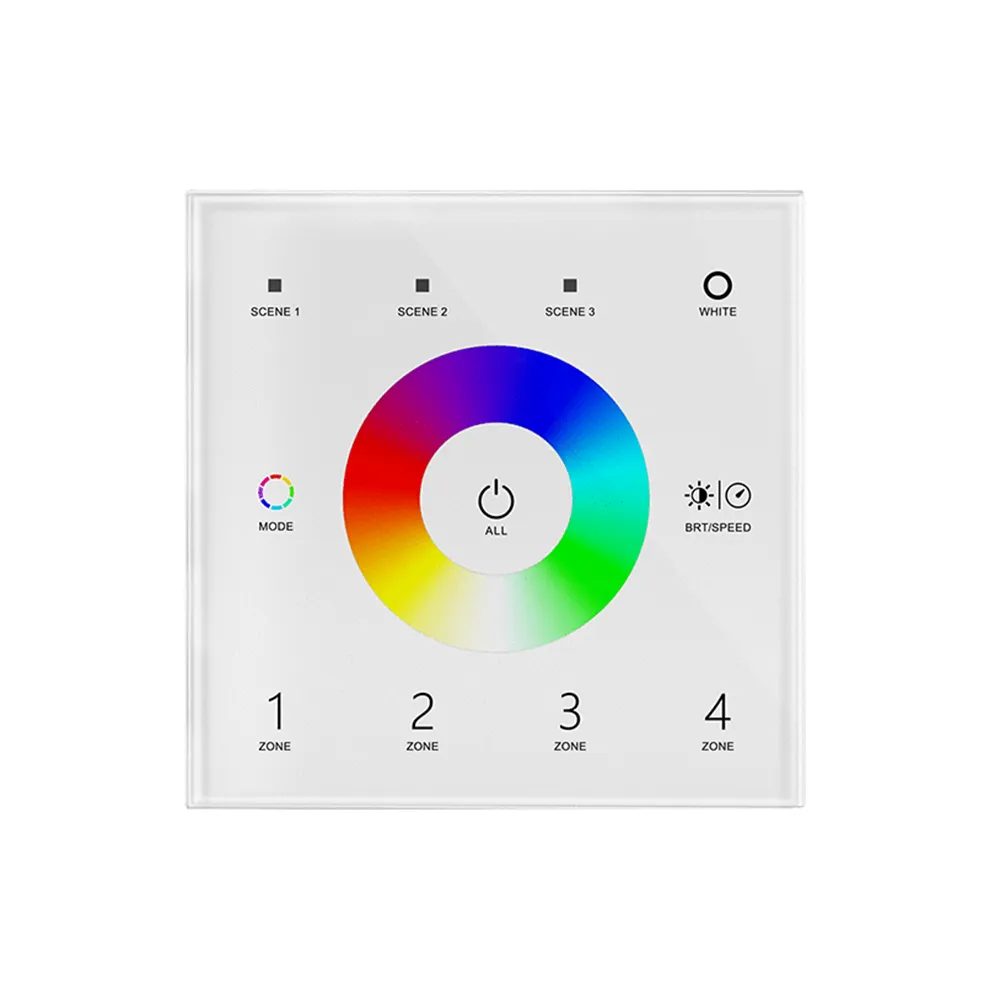

- Ultra sensitive high strength glass touch panel with touch color wheel in the middle.
- Smooth and accurate color adjustment by touching the color wheel.
- Touch keys with LED indicator.
- Available in White finish glass panel.
Applications
- Trade Show & Exhibit Lighting
- Retail Display Lighting
- Architectural Lighting
- Hotels, Casinos, and Clubs
- Custom Lighting Shows
- Stage Lighting
Specifications

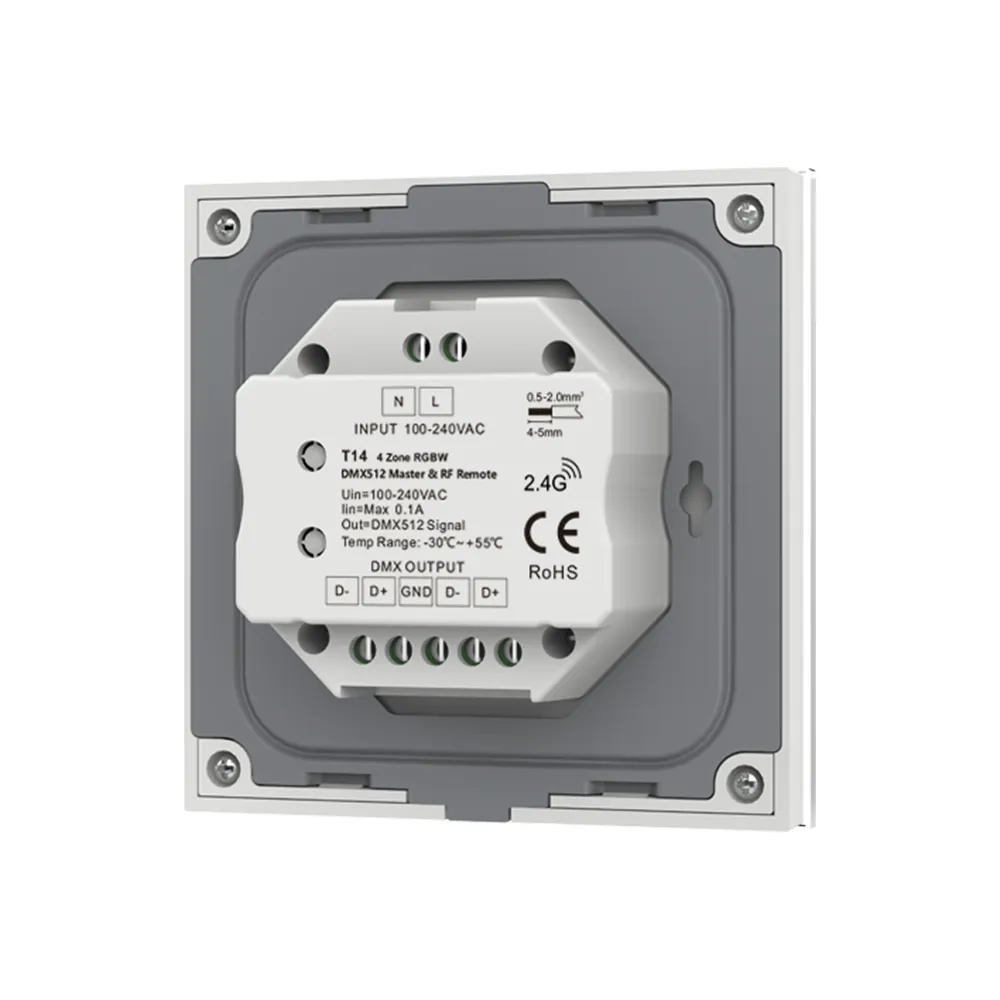

- Input voltage: 100-240VAC
- Input current: Max 0.1A
- Output signal: DMX512, RF 2.4GHz
- Light type: RGBW
- Output DMX Channel number: 16
-
Input signal: Touch key, RF 2.4GHz
- RF Control Distance: 32 ft / 10 meters (Barrier-free space)
- Dimming level: 256 levels
- Dimming range: 0 -100%

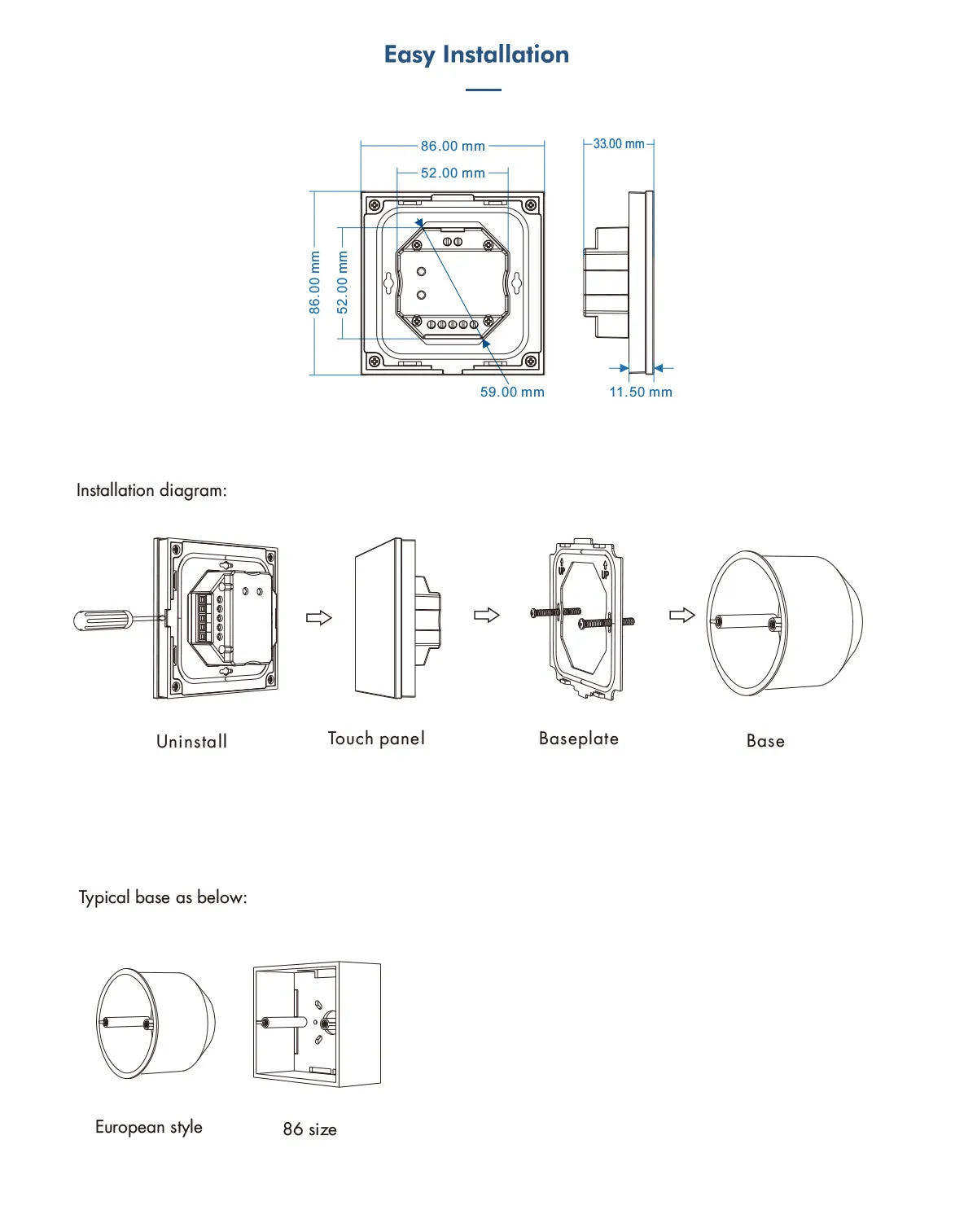

- Dimensions: 3.38 in. L x 3.38 in. W x 1.30 in. H
- EMC standard (EMC): ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4
- Safety standard: EN 62368-1:2020 A11:2020
- Radio Equipment (RED): ETSI EN 300 328 V2.2.2
- Certification: CE, EMC, RED
